TAKUBOMATIC LENS EDGING SYSTEMS



The e950 Edger, (Tracer) & Blocker come as a complete package for $29,000 + GST

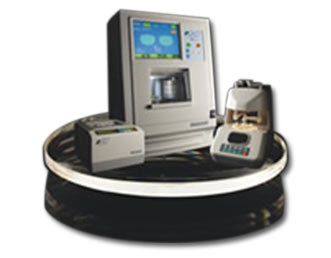

E950 Edger

• Type-GP (all in one model): Chamfering + Grooving + Polishing
• Type-G: Chamfering + Grooving
• Type-P: Polishing
• Type-S: Basic Model Eleven (11) languages covered
• Edging Lens Diameter: 16mm - 100 mm (with extra small lens block chuck)
• Dimension: 370 x 370 x 540 (mm)
• Weight: 37kgs
• Power Source: AC 100v
• Power Consumption: 600 W : 50/60Hz

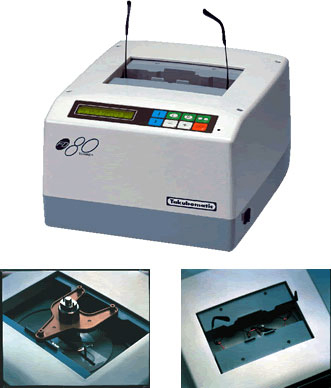

FD-80 Tracer

3D Scanning, Accurate, Automatic, Both-eye measurement

• Easy Setting of Frame and Lens Tracing Attachment
• Easy Tracing from Lens or Pattern Plate
• Storable about 200 data with using Barcode Reader (optional)
• Tracing Range: Frame: 18-80mm, Lens: 15-80mm
• Dimensions: 280 x 310 x 180 (mm)
• Weight: 7kgs
• Power Source: Main machine: DC24v 20w (with AC Adapter)
• AC Adapter: AC100-240v 50/60Hz

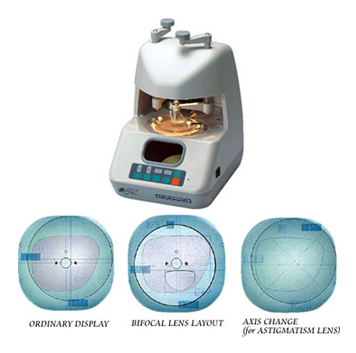

LS-82 Lens Blocker

Easy layout and accurate lens blocking

• Clear image display of the eye-shape exactly in the same scale
• Transfer the lay-out data of right lens to left lens
• Accurate lay-out setting by "BOX" system
• Bar-code function is available
• Dimensions: 215 x 270 x 310 (mm)
• Weight: 5kgs
• Power Source: AC100 - 120v / AC230 - 240v
• Power Consumption: 16w, 50/60HZ
